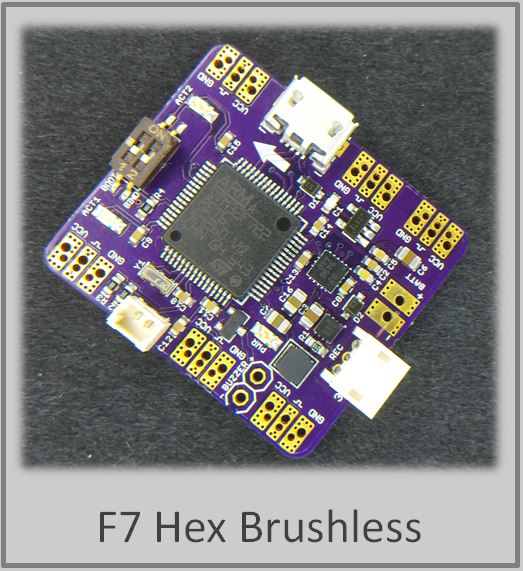

Designed for small Quads using brushless motors and esc’s,
2 – 4S Capable,
PDB is part of the board design,
Direct solder esc’s or use 1.5mm/2mm sockets,
Direct solder battery or use 2mm socket,
ARM STM32F7 processor,
USB socket for firmware flashing and parameter editing,
ICM-20602 Gyro/Accelerometer connected via SPI,
On board voltage monitoring,
Buzzer driver included,
5v @1A output via 1.25mm socket,
Dip switch for both Bind and Boot loader mode,
Runs BetaFlight firmware,
Receiver socket with 5v or 3.3v option (Spek sat @3.3v, FrSky @5v),
Dimensions: 28mm x 32mm,
This board can be ordered from OSHpark (v1.1).
Use this file to create a Stencil on OSH stenciles.
The BOM can be downloaded here.
The Schematic can be downloaded here (v1.1).
The Board Layout can be downloaded here.
If you have the V1 board, Please copy and past the following in the
CLI after each firmware update then save;
resource MOTOR 6 none
resource MOTOR 7 none
resource MOTOR 6 A01
resource MOTOR 7 C08
Released under the Creative Commons
Attribution NonCommercial NoDerivatives 4.0 License.
Made available without any Express or Implied Warranties
Please get the firmware for the AlienFlightNG F7 from here, The firmware target will soon be added to the Betaflight GUI.
